G2 R-PLUG

G2 R-PLUG

G2 Tri-Sure® steel and plastic R-plugs™ are the standard for trouble-free sealing and opening of metal containers.

Backed by the confidence that comes with the name Tri-Sure® - the global leader in industrial closure systems and packaging components for metal containers, plastic containers, IBCs, and more. Whatever the product, our patented closure systems will be able to protect your containers’ contents and reduce the risk of spillage.

Our G2 Tri-Sure® steel and plastic R-plugs™ are designed to meet the highest of standards. Made with the highest grade of stainless steel and other metals, these plugs can meet the needs of any application. They are easy to install and provide reliable protection against spills and contaminants. Our G2 Tri-Sure® steel and plastic R-plugs™ will provide the best combination of strength, durability, and cost-effectiveness.

Available Sizes:

2" (G2)
Benefits
  • Opens faster and easier.

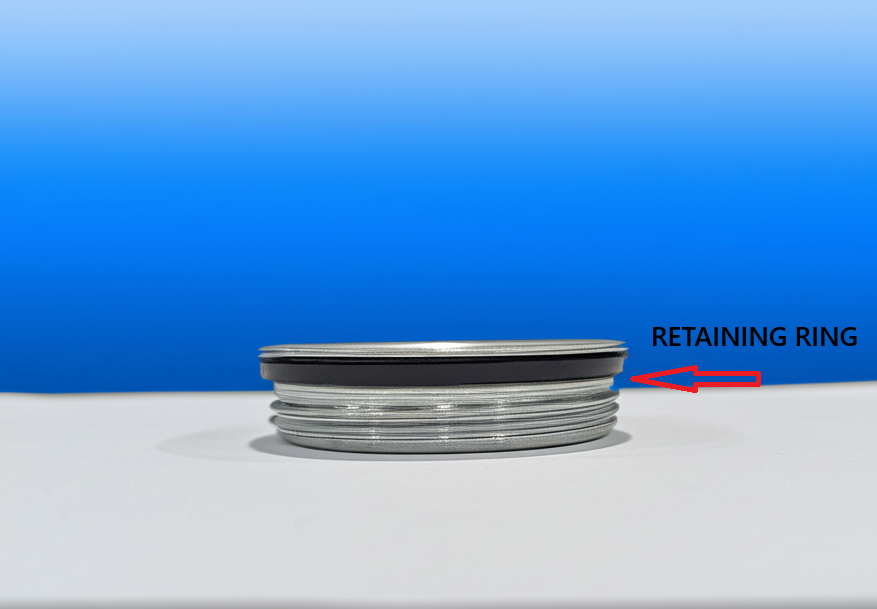

  • Unique retaining ring design means no more washer gripping and end-of-line stoppages.
  • Conical washer seat design means no more washer looping and filling line stoppages.
  • This industrial closure is for metal containers.



Options
  • The R-plug™ design is the standard application available on all Tri-Sure® G2 steel and plastic plugs.
  • Standard Tri-Sure® steel plugs are zinc-plated to prevent corrosion. Stainless steel, phosphate, or tin-plated mild steel are also available for special applications.
  • Tri-Sure® plastic plugs for steel containers are available in white PP, PE, and nylon.
  • All Tri-Sure® plastic plugs for steel containers are FM Factory Mutual certified.
RECOMMENDED CLOSING TORQUE FOR DRUM FILLERS RECOMMENDED CLOSING TORQUE FOR DRUM MAKERS



Parameter Specification
Plug Size 2 inch (G2)
Thread Type BSP (British Standard Pipe) or NPS (National Pipe Straight)
Material Options Steel (zinc-plated & lacquered), Polypropylene (PP), Polyethylene (PE), Nylon
Washer Options NBR, EPDM, PE  and based on chemical compatibility
Corrosion Resistance Yes – Steel plugs are zinc-plated & lacquered
Seal Type Conical washer seat ensures secure and leak-proof sealing
Tamper Evident Option Optional tamper-evident features available
Reusability Yes – Designed for repeated use without performance loss
Typical Applications Chemicals, Food Products, Paints, Lubricants, Solvents, Industrial Packaging
Installation Tool Manual Torque Wrench or Pneumatic Torque Wrench
Feature Advantage
Quick & Easy Opening Retaining ring design prevents washer gripping and stoppages
Reliable Sealing Conical washer seat eliminates looping, ensuring leak-proof sealing
Corrosion Resistance Steel plugs are zinc-plated & lacquered for enhanced durability
Versatile Material Options Available in steel, PP, PE, and nylon to match a range of applications
High Chemical Compatibility Washer options (NBR, EPDM, PE, etc.) support aggressive chemical resistance
Reusability Designed for multiple sealing cycles without loss of integrity
Tamper-Evident Capability Optional features for improved safety and compliance
Automated Line Friendly Smooth design and sealing mechanism reduce disruptions in filling lines

Applications

  • Chemical & Hazardous Material Storage

  • Food-Grade Liquid Containment

  • Industrial Oils & Lubricants

  • Solvent-Based Products

  • Paints, Coatings & Adhesives
