4s® Closure System

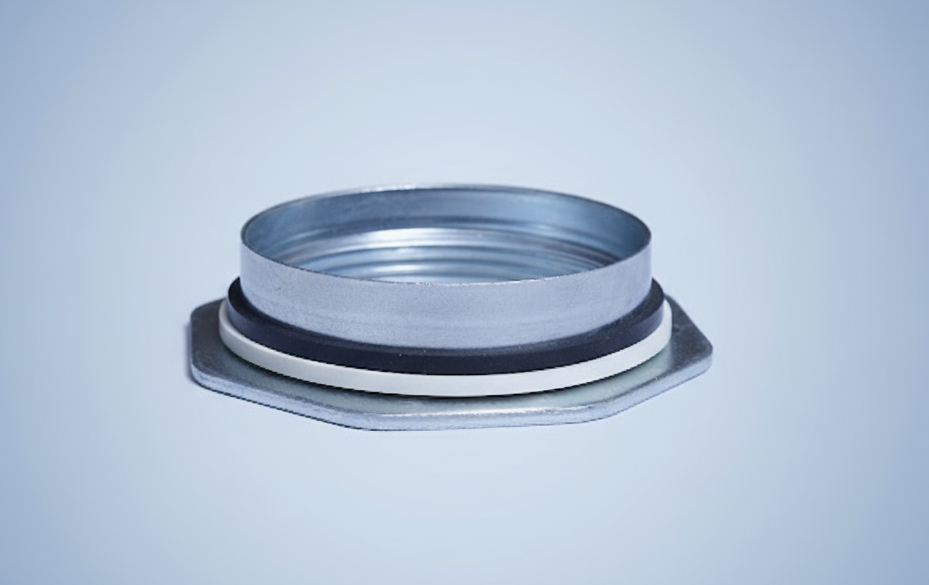

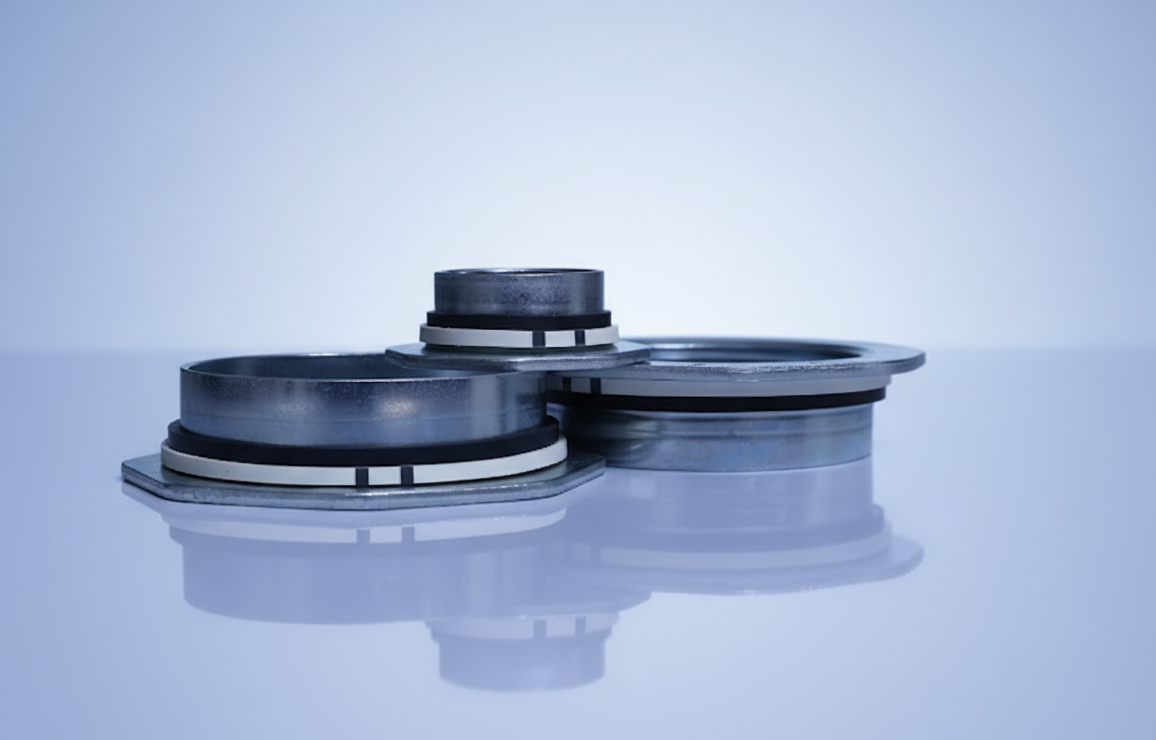

The Tri-Sure® 4s® double washer system is a fascinating innovation in industrial packaging. It enhances the security of steel drums by creating an "airbag" effect, thanks to two rubber washers fitted on each metal flange. This design significantly reduces leakage risks and helps protect the drum's contents from contamination, air, dust, and other external elements.
Additionally, the system improves chemical resistance and minimizes corrosion, making it a reliable choice for industries dealing with hazardous or sensitive materials
Benefits
-
Enhanced Safety
Reduces liability exposure, ensuring drums meet the highest global standards. -
Reliable Supply
A worldwide manufacturing footprint guarantees seamless availability. -
Maximum Security
Trusted by drum fillers worldwide, the system ensures a consistently tight, secure seal every time. -
Hazard-Free Handling
Engineered for safety, the system promotes safer working environments during both filling and transport. -
Optimized Efficiency
The high chemical compatibility of the double washers reduces the need for multiple drum and closure configurations—streamlining inventory and logistics.
This system clearly prioritizes safety, efficiency, and reliability, making it an excellent solution for industrial packaging needs.
Flange 4s SystemSystem Components Products
The 4s® Closure System by Trisure is composed of four key elements that work in harmony to ensure secure, leak-proof, and tamper-evident sealing for industrial drums.
Tri-Sure® R Plug
At the heart of the system is the Tri-Sure® R Plug, available in standard 2” and 3/4” sizes, manufactured from high-quality steel or plastic. Designed with precision threading, the plug ensures a tight, reliable seal under various handling and transport conditions.

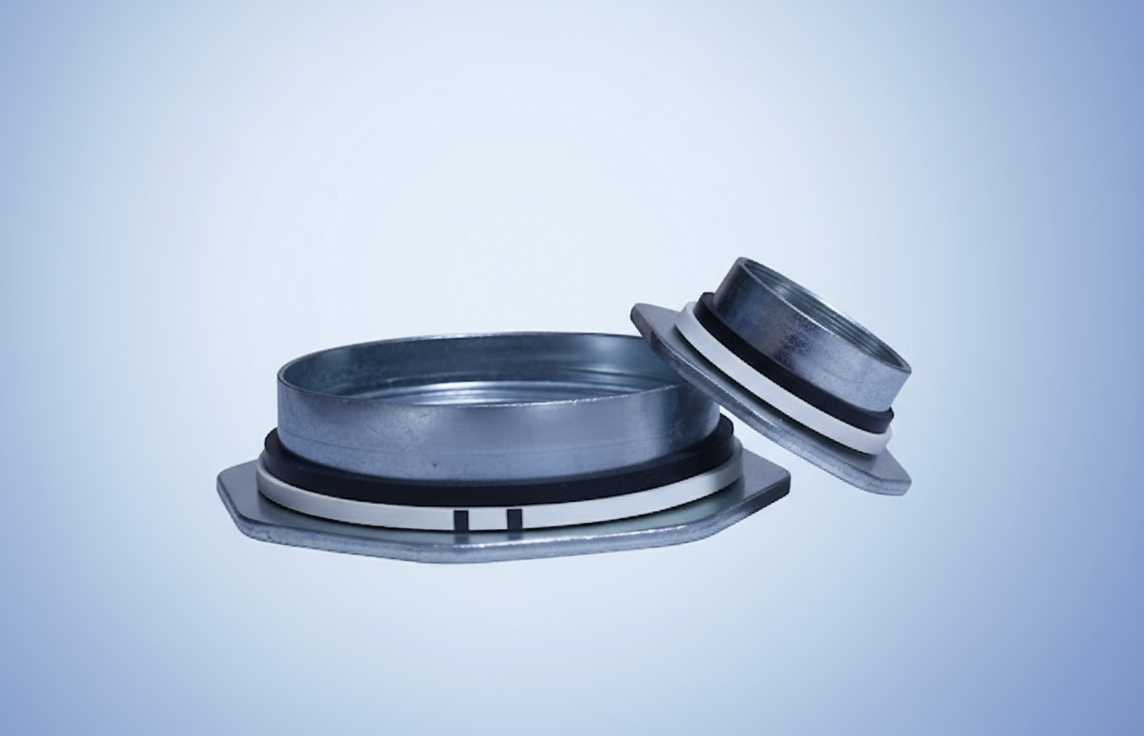

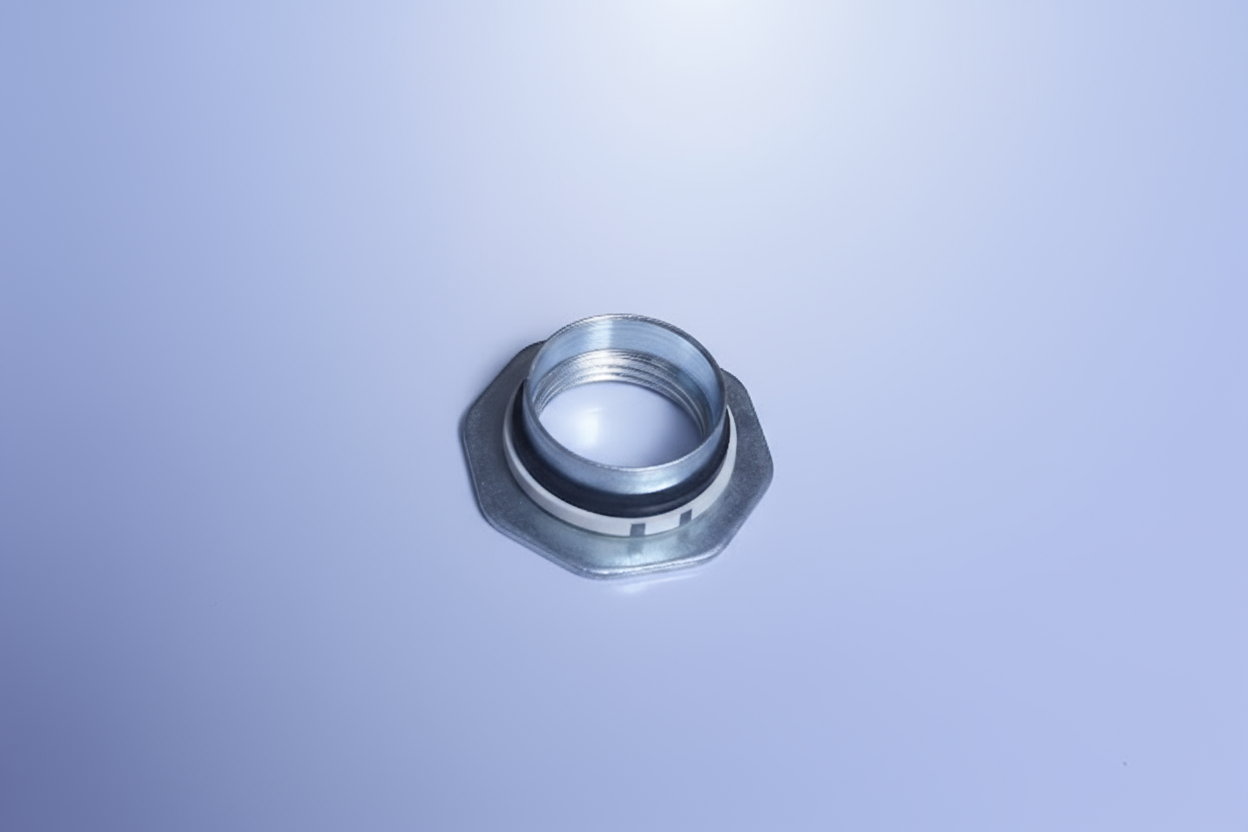

Tri-Sure® 4s Flange
The Tri-Sure® 4s Flange is permanently affixed to the drum opening and provides a robust interface for the plug. It is engineered to withstand internal pressure and external stress, maintaining the structural integrity of the closure even during rigorous use.
Washer
To prevent leakage and ensure chemical resistance, a Washer is inserted between the plug and the flange. This sealing washer is available in multiple materials—such as NBR, EPDM, VITON and PTFE depending on the compatibility required for the product being stored or transported.
Capseal
Completing the system is the Capseal, which adds an extra layer of protection. It not only shields the plug from physical damage and environmental exposure but also serves as a tamper-evident indicator, ensuring product safety and regulatory compliance.
| Parameter | Specification |
|---|---|
| Product Name | Tri-Sure® 4s® Closure System – for Metal Containers |
| Material | Hot-rolled & Cold-rolled steel (zinc-coated) |
| Coating (Optional) | Epoxy-phenolic lacquer (for enhanced chemical resistance) |
| Available Sizes | 2” (50 mm) and 3/4” (20 mm) |
| Compatible Drums | Tight-head steel drums |
| Gasket Material Options | NBR, EPDM, VITON and PTFE |
| Capseal | Metal or plastic Tamper-evident design (crimped or snap-fit) |
| Thread Type | BSP precision threading for consistent torque and secure seal |
| Temperature Resistance | -20°C to +70°C (based on gasket material) |
| Applications | Chemicals, Petrochemicals, Pharmaceuticals, Paints & Solvents, Agrochemicals, Industrial Oils |
| Advantage | Description |
|---|---|
| Enhanced Safety | Dual washer design reduces leakage risk and meets global safety standards. |
| Maximum Security | Ensures airtight and tamper-evident sealing for sensitive or hazardous contents. |
| Corrosion Protection | Coated steel components resist rust and degradation over time. |
| Hazard-Free Handling | Minimizes spillage, making storage and transport safer for workers. |
| Global Availability | Backed by a worldwide manufacturing and distribution network. |
| Efficiency Optimized | Reduces the need for multiple closure types thanks to versatile design. |
Application Video Products
Watch how the Tri-Sure® Metal Closure System ensures secure, tamper-evident sealing for steel drums.
This video demonstrates the simple application of flanges, plugs, and Tab-Seal® caps using manual or pneumatic tools. Designed for drums from 0.6 mm to 2 mm, the system offers leak-proof protection and global reliability.
This video demonstrates the simple application of flanges, plugs, and Tab-Seal® caps using manual or pneumatic tools. Designed for drums from 0.6 mm to 2 mm, the system offers leak-proof protection and global reliability.
